This small repository can help assist you if you are looking for any technical guides or diagrams to assist with your Rickenbacker projects

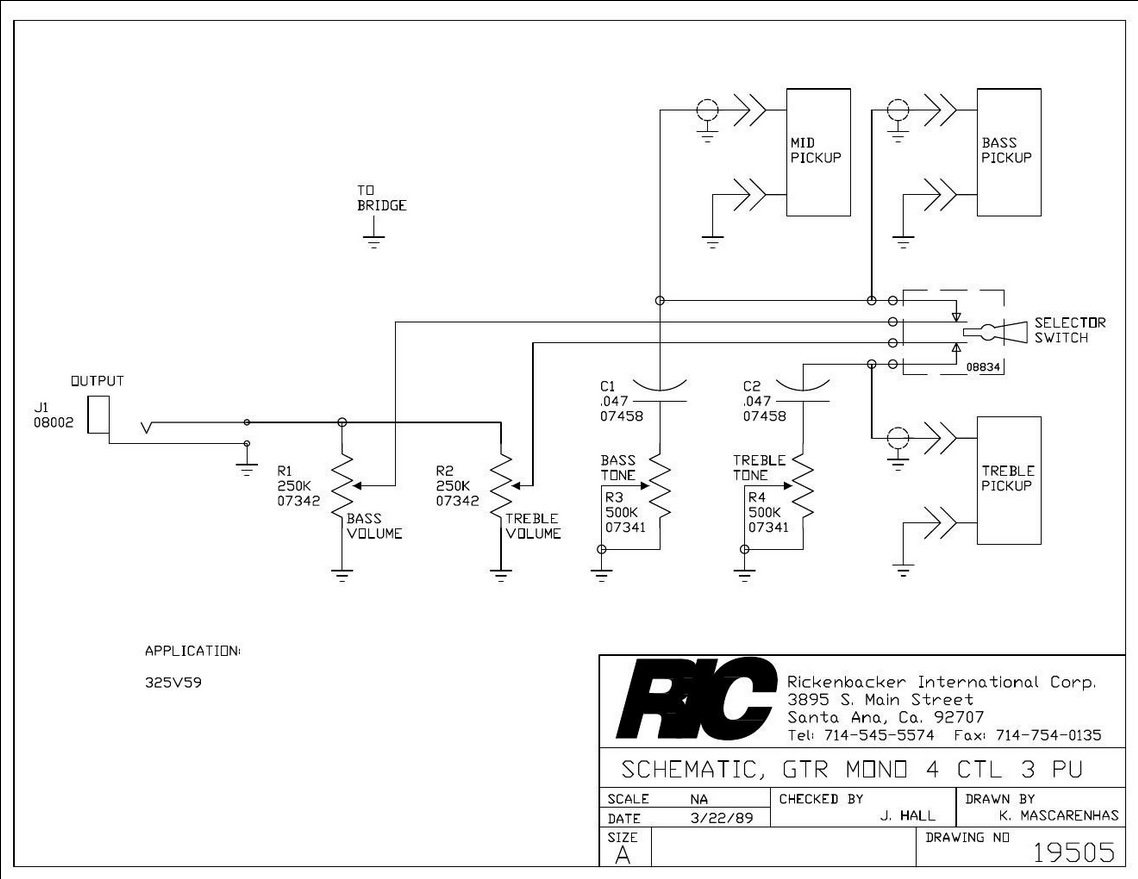

4 Knob, 3 Pickup, Mono Schematic

For use with 325V59 and 325V58 models

Schematic

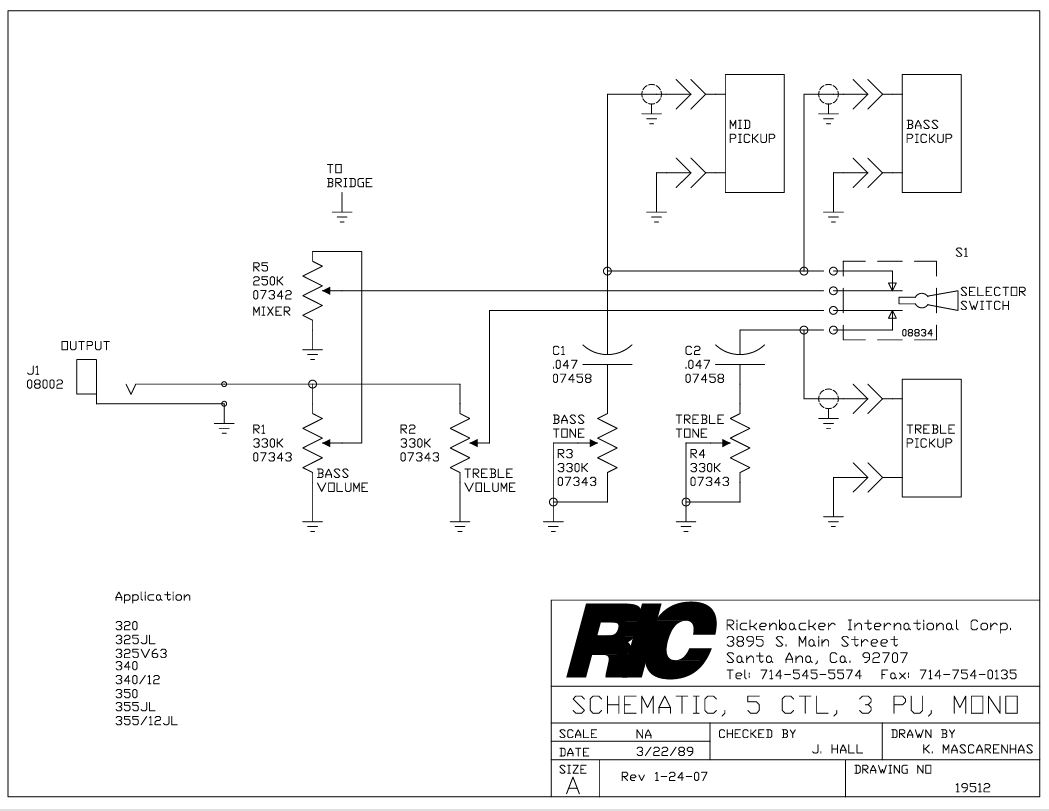

5 Knob, 3 Pickup, Mono Schematic

For use with 320, 325, 325V63, 325C64, 340, 350, 355 models

Schematic

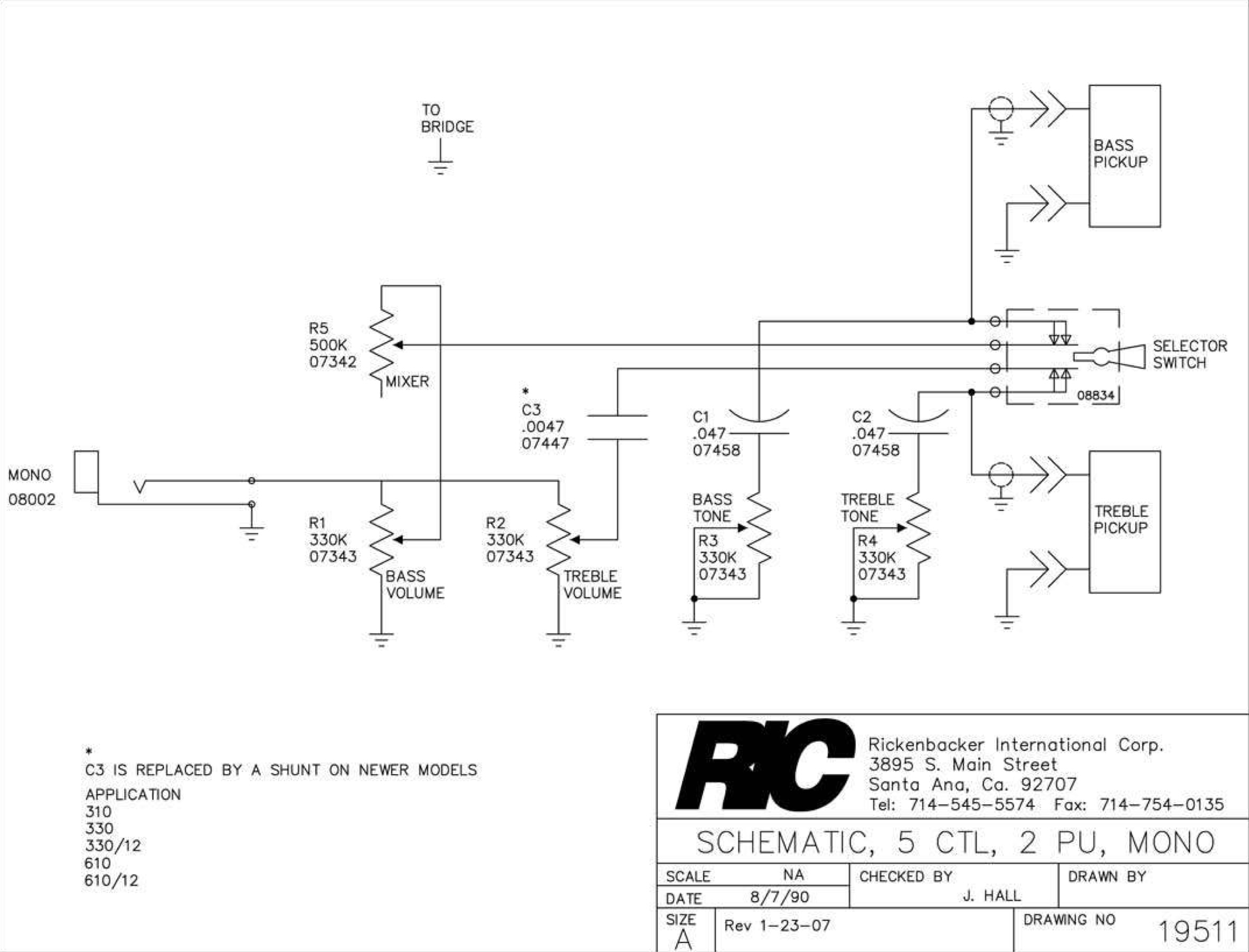

5 Knob, 2 Pickup, Mono Schematic

For use with 310, 330, 610, 610 models

Schematic

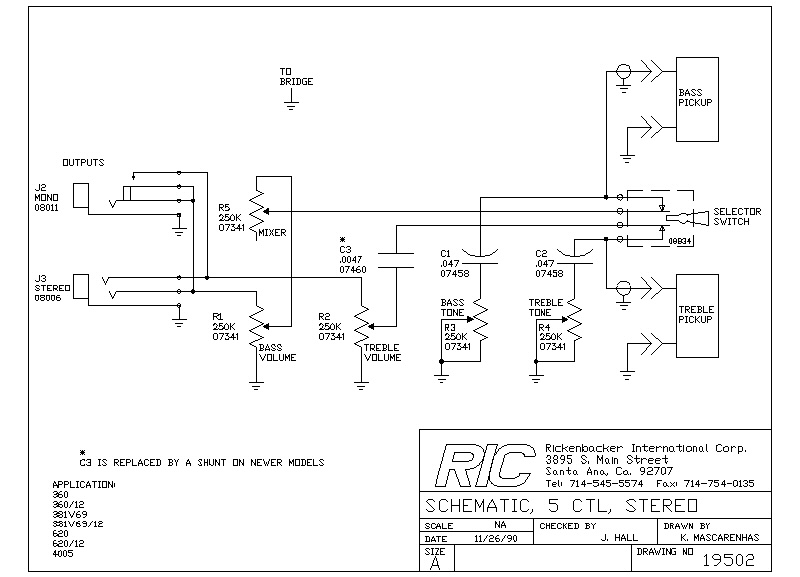

5 Knob, 2 Pickup, Stereo Schematic

For use with 360, 360, 381, 381, 620, 620, 4005 models

Schematic

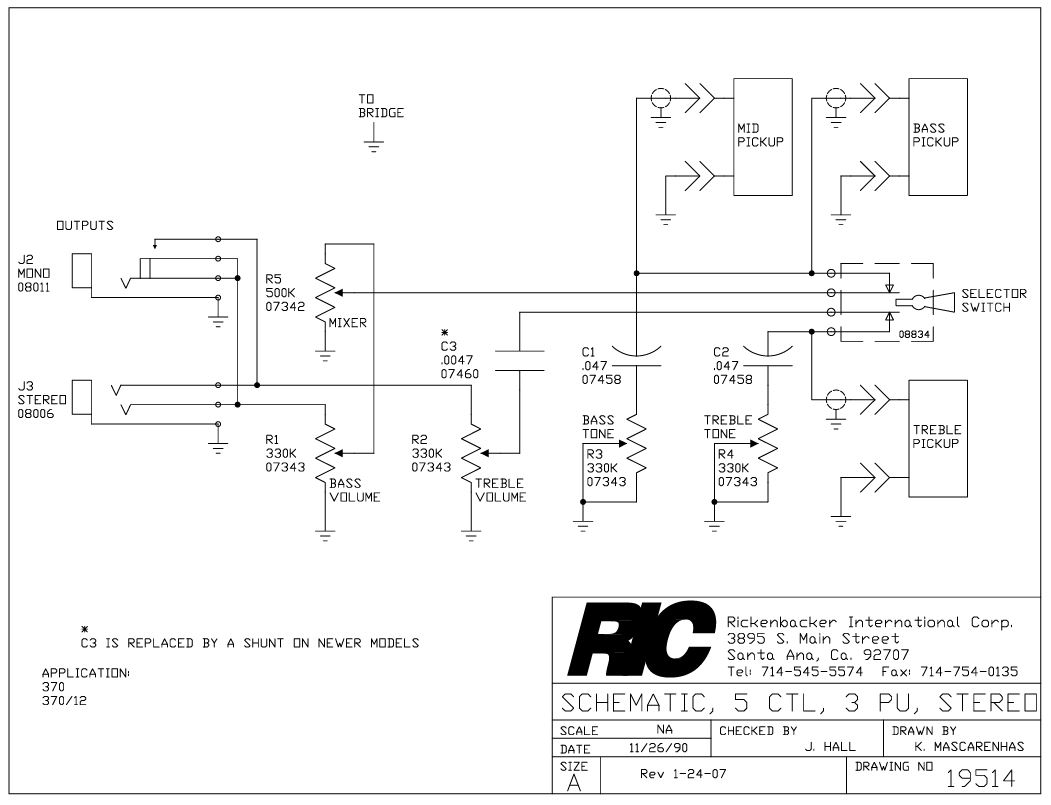

5 Knob, 3 Pickup, Stereo Schematic

For use with the 370 models

Schematic

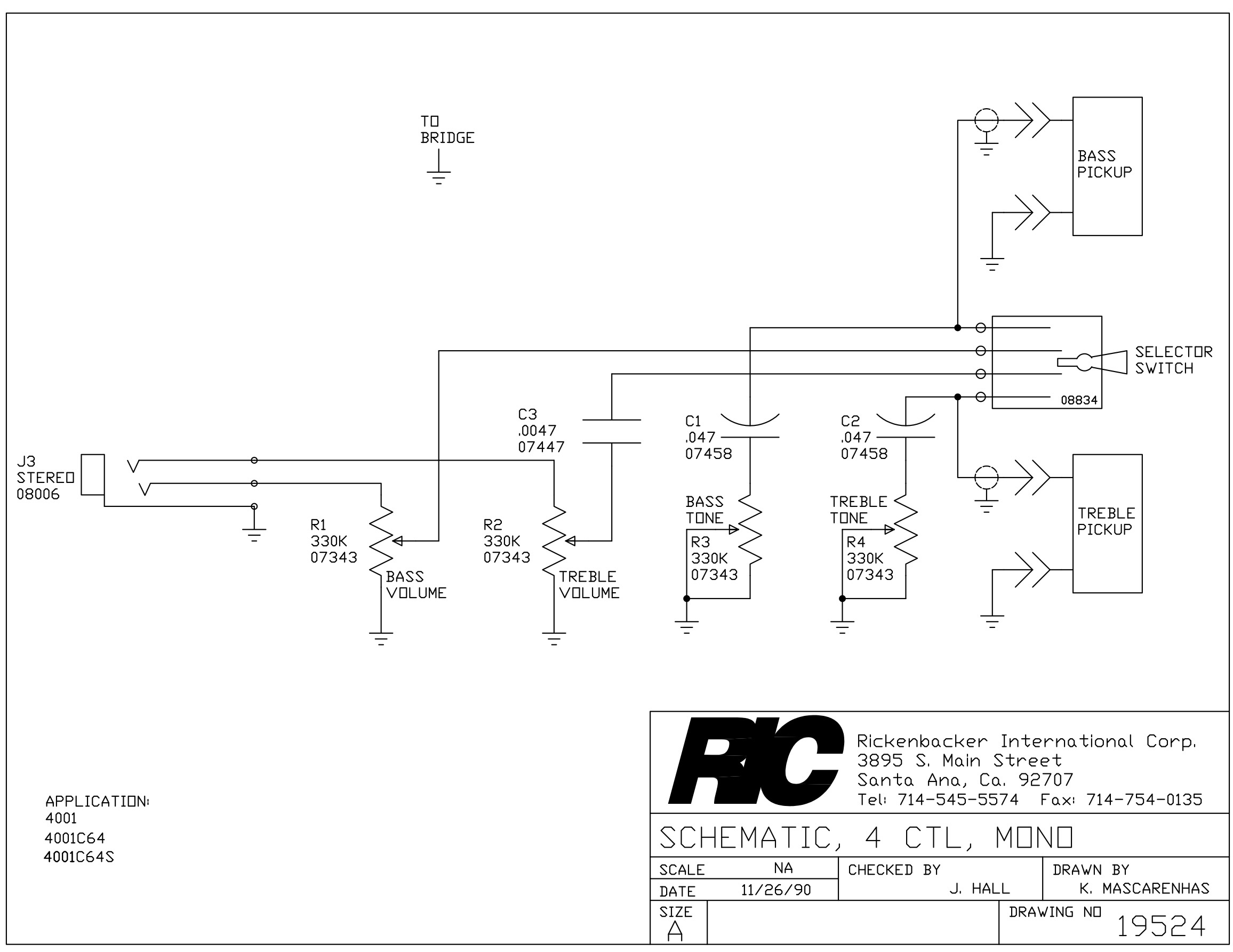

4 Knob, 2 Pickup, Mono Schematic

For use with 4001S, 4003S, 4001V63, 4001CS, 4001C64, 4001C64S models - Note the C3 capacitor is not present for the 4001V63

Schematic

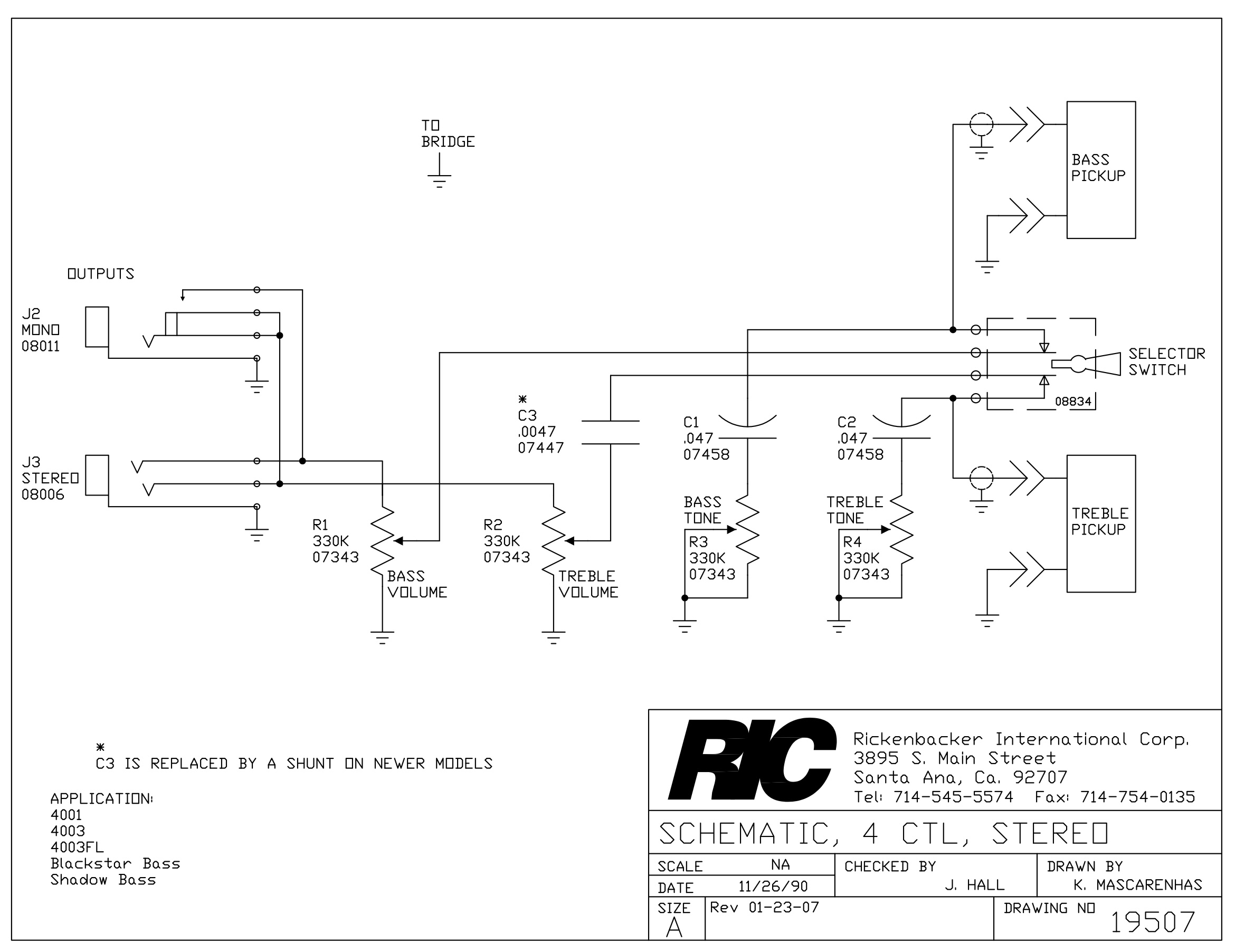

4 Knob, 2 Pickup, Stereo Schematic - Vintage 4001 and 4003

For use with 4001 and All 4003 models until mid 2000's - Note the C3 capacitor is not present for the 4003 models

Schematic

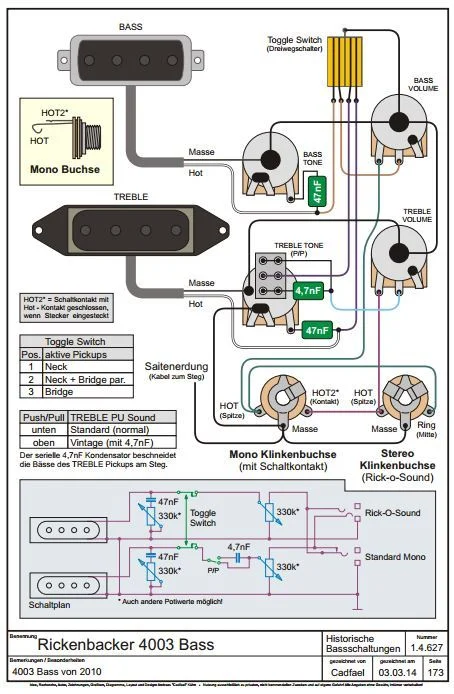

4 Knob, 2 Pickup, Stereo Schematic - Modern 4003

For use with modern 4003's since the mid 2000's -

Schematic
Rickenbacker 4001 and 4003 Bridge Pickup Assembly

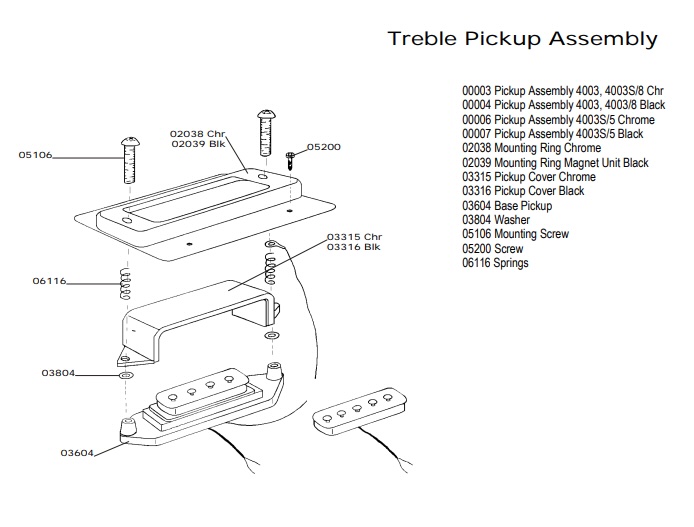

Useful diagram showing how the bridge pickup assembly is organized, including how to mount the chrome pickup cover.

Diagram
Guitar Bridge Assembly

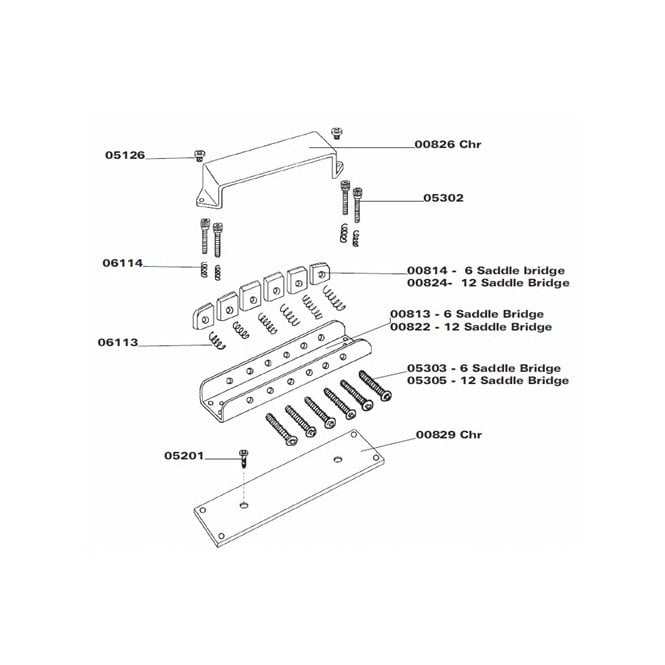

Useful diagram showing how the guitar bridges are assembled, for models such as the 330, 360, 381, 620, 660 and many others.

Diagram
