| Harnesses |

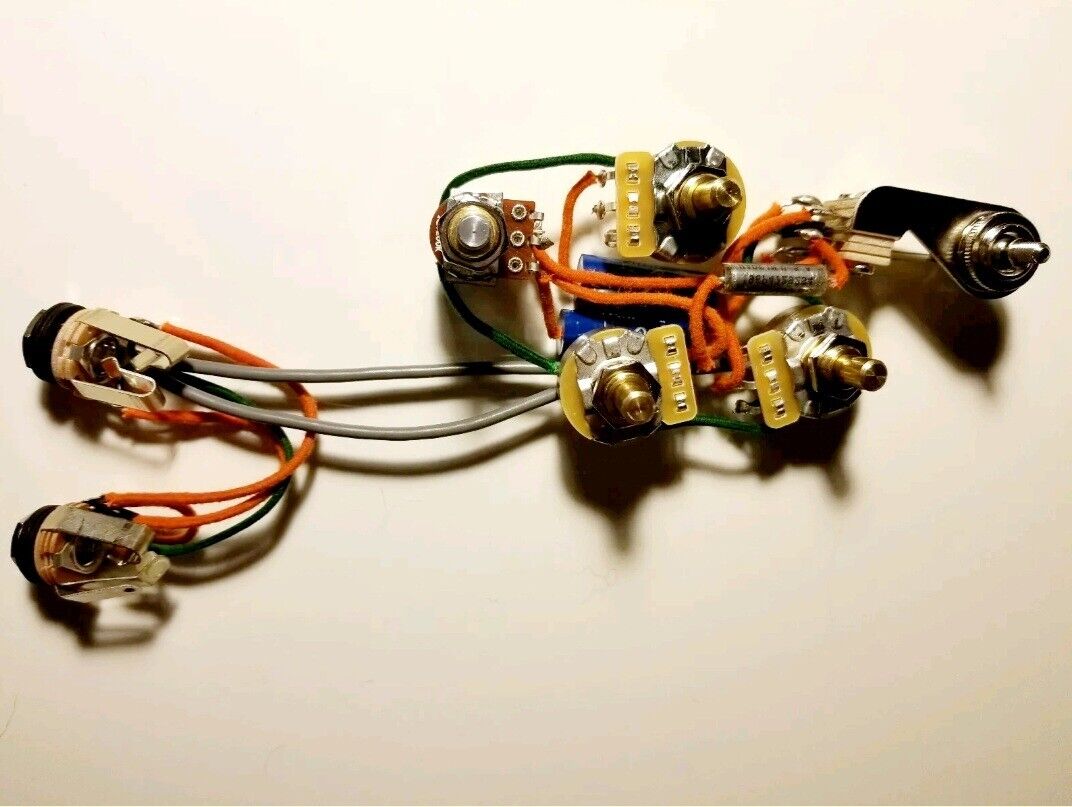

4001 Wiring Harness- w/NOS Cornell-Dubillier Caps & ROS Outputs & .0047uF Cap
$114.00
Reproduction 1970's-Early 80's WiringHarness for Rickenbacker 4001 Basses
I built this harness using components from the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, RIHS, or Toaster single coil pickups. The tone caps are NOS 70's Cornell-Dubillier.047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the volume pots are the same with a 250K rating, and the output jacks are Switchcraft. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001 or 4003 with single coil pickups and Rick-O-Sound output jacks. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is available with mono output for $10.00 less, or vintage push-pull tone option for $12.00 more with an original NOS Cornell-Dubillier. 0047uF spec cap. I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
Show more Reproduction 1970's-Early 80's WiringHarness for Rickenbacker 4001 Basses
I built this harness using components from the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, RIHS, or Toaster single coil pickups. The tone caps are NOS 70's Cornell-Dubillier.047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the volume pots are the same with a 250K rating, and the output jacks are Switchcraft. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001 or 4003 with single coil pickups and Rick-O-Sound output jacks. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is available with mono output for $10.00 less, or vintage push-pull tone option for $12.00 more with an original NOS Cornell-Dubillier. 0047uF spec cap. I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
|

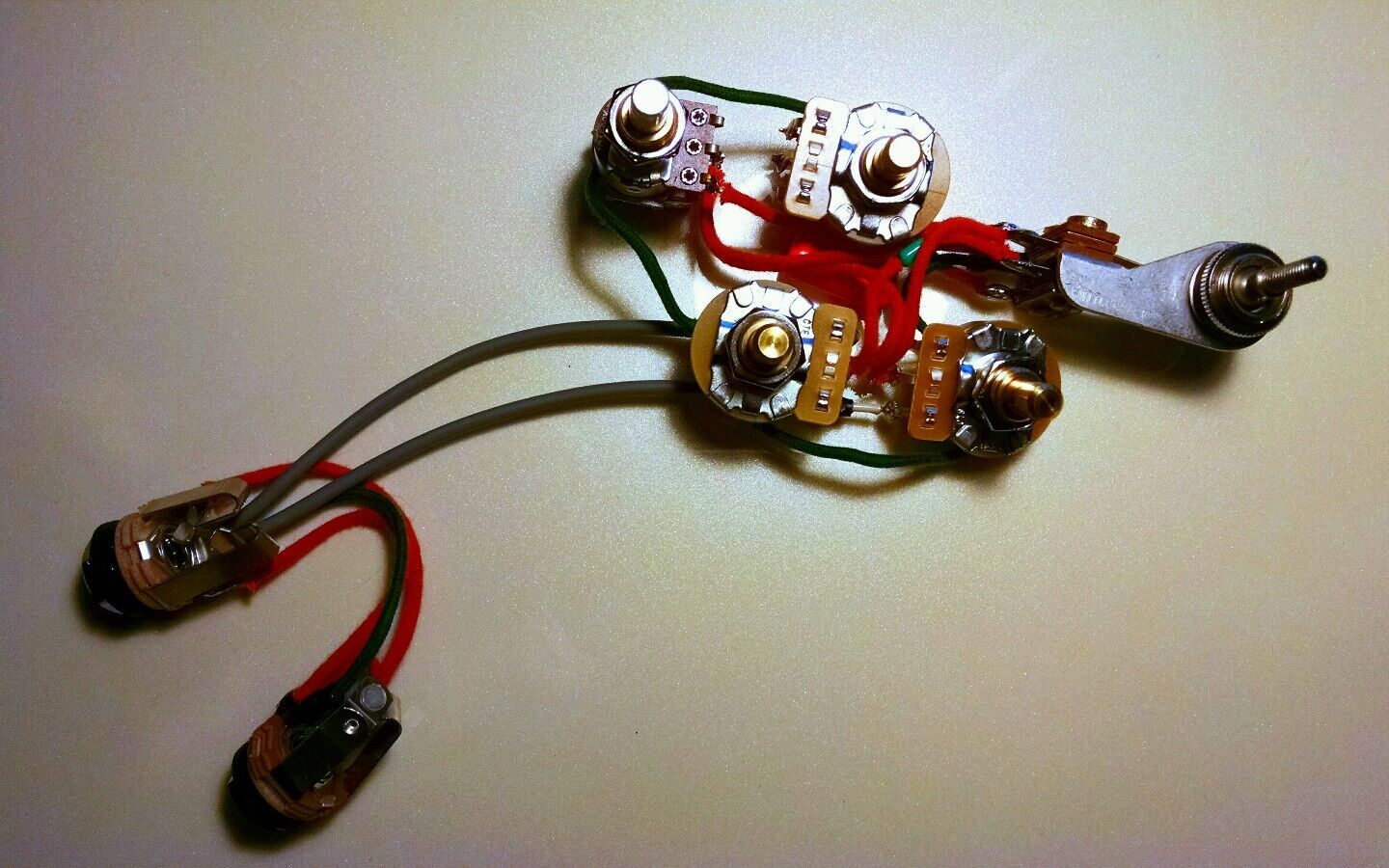

4001/4003Wiring Harness- w/NOS Cornell-Dubillier Caps & ROS Outputs
$111.00
Reproduction 1970's-Early 80's WiringHarness for Rickenbacker 4001 Basses
I built this harness using components from the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, RIHS, or Toaster single coil pickups. The tone caps are NOS 70's Cornell-Dubillier.047uF spec units, o Sprague, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the volume pots are the same with a 250K rating, and the output jacks are Switchcraft. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001 or 4003 with single coil pickups and Rick-O-Sound output jacks. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is available with mono output for $10.00 less, or vintage push-pull tone option for $12.00 more with an original NOS Cornell-Dubillier. 0047uF spec cap. I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
Show more Reproduction 1970's-Early 80's WiringHarness for Rickenbacker 4001 Basses
I built this harness using components from the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, RIHS, or Toaster single coil pickups. The tone caps are NOS 70's Cornell-Dubillier.047uF spec units, o Sprague, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the volume pots are the same with a 250K rating, and the output jacks are Switchcraft. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001 or 4003 with single coil pickups and Rick-O-Sound output jacks. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is available with mono output for $10.00 less, or vintage push-pull tone option for $12.00 more with an original NOS Cornell-Dubillier. 0047uF spec cap. I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
|

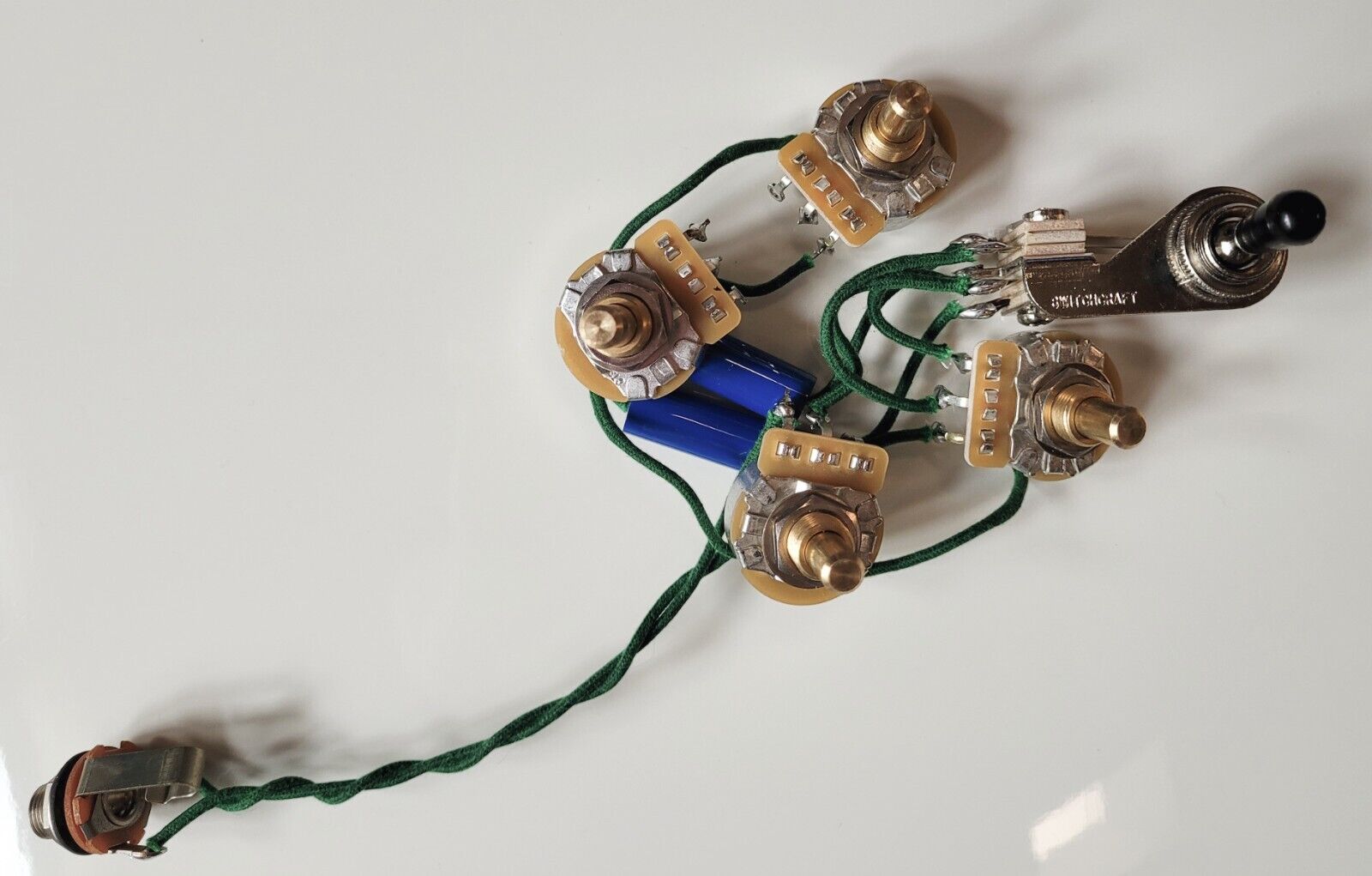

Left Handed Rickenbacker 4001/4003 Harness w/Vintage Tone - ROS w/SoZo Tone Caps
$142.00
I built this harness using components from many of the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, RIHS, or Toaster pickups. The main tone caps are SoZo .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 10% of rated spec, and matched in pairs to within 1% of each other. The volume pots are solid shaft 250K CTS, while the bridge tone pot is a 500K Bourns push-pull to activate the vintage tone option using a .0047uF tone cap. The neck pickup tone pot is a CTS with a 500K rating, and the output jacks are Switchcraft, all wired up with vintage style cloth insulated 22 gauge wire. Since I'm using the standard available CTS audio taper pots originally made for right handed use, if wired for left handed use, the swell will be fast in the first 1/3rd rotation, then gradual to 10 with counterclockwise rotation. If wired for clockwise rotation, then increase in tone or volume will be gradual till last 1/3rd rotation when where taper is much faster. Please specify which rotation you prefer. This harness is ideal for any Rickenbacker 4001 or 4003 with single coil pickups and Rick-O-Sound output jacks. I also have vintage style knobs at $12.00 a set to go with this harness. I can build a custom harness for most Rickenbacker guitars and basses. ***Note: Push-pull controls require 1" of cavity depth below the control.***Any questions, please ask
Show more I built this harness using components from many of the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, RIHS, or Toaster pickups. The main tone caps are SoZo .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 10% of rated spec, and matched in pairs to within 1% of each other. The volume pots are solid shaft 250K CTS, while the bridge tone pot is a 500K Bourns push-pull to activate the vintage tone option using a .0047uF tone cap. The neck pickup tone pot is a CTS with a 500K rating, and the output jacks are Switchcraft, all wired up with vintage style cloth insulated 22 gauge wire. Since I'm using the standard available CTS audio taper pots originally made for right handed use, if wired for left handed use, the swell will be fast in the first 1/3rd rotation, then gradual to 10 with counterclockwise rotation. If wired for clockwise rotation, then increase in tone or volume will be gradual till last 1/3rd rotation when where taper is much faster. Please specify which rotation you prefer. This harness is ideal for any Rickenbacker 4001 or 4003 with single coil pickups and Rick-O-Sound output jacks. I also have vintage style knobs at $12.00 a set to go with this harness. I can build a custom harness for most Rickenbacker guitars and basses. ***Note: Push-pull controls require 1" of cavity depth below the control.***Any questions, please ask
|

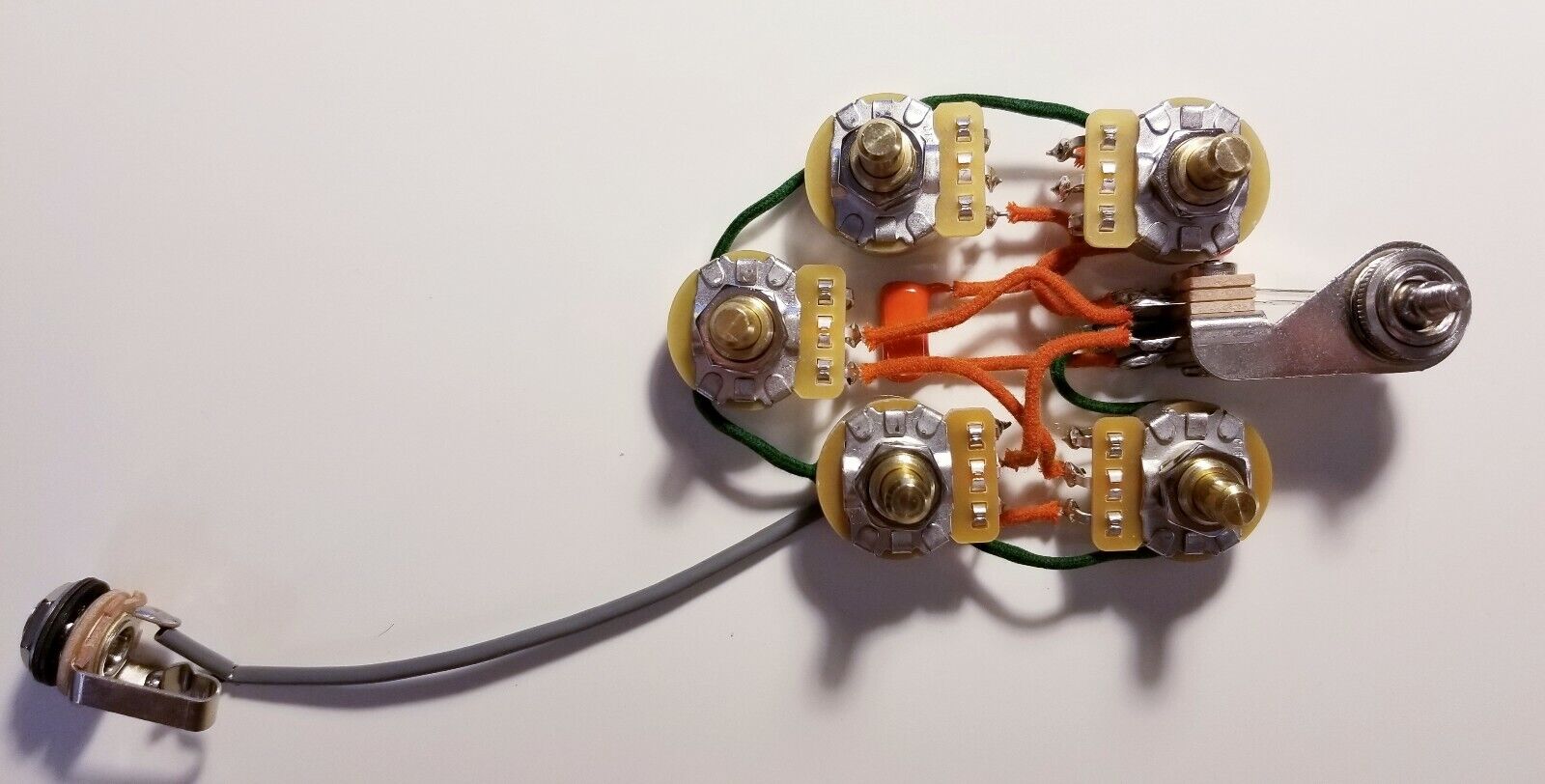

Rickenbacker 330,340,360,620,660, 4005 5-Control Guitar Harness - Mono Output
$111.00
Wiring Harness for Rickenbacker 360/620/330 5-Control Guitars
I built this harness using components from the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, or Toaster single coil pickups. The tone caps are Sprague .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone and neck pickup fader pots are solid shaft 500K CTS units, while the volume pots are the same with a 250K rating, and the output is made by Switchcraft. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker guitar with the 5-control harness, single coil pickups and mono output. This harness is available with stereo/mono output jacks for $10 more. I also carry the five vintage style black knobs with white pointers for these instruments for $15 a set. Please message me if you want them added to your order BEFORE you purchase. I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
Show more Wiring Harness for Rickenbacker 360/620/330 5-Control Guitars
I built this harness using components from the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, or Toaster single coil pickups. The tone caps are Sprague .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone and neck pickup fader pots are solid shaft 500K CTS units, while the volume pots are the same with a 250K rating, and the output is made by Switchcraft. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker guitar with the 5-control harness, single coil pickups and mono output. This harness is available with stereo/mono output jacks for $10 more. I also carry the five vintage style black knobs with white pointers for these instruments for $15 a set. Please message me if you want them added to your order BEFORE you purchase. I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
|
Rickenbacker 330,360,620 5-Control Guitar Harness 70's Style Mono/Stereo Output
$121.00
Wiring Harness for Rickenbacker 360/620/330 5-Control Guitars and 4005 Basses
I built this harness using components from the same suppliers that Rickenbacker used in the 70's and early 80's, and optimized it for use with the stock Hi-Gain, or Toaster single coil pickups. The tone caps are NOS Cornell-Dubillier .047uF spec units from the 70's, while the pickup selector and output jacks are made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone and neck pickup fader pots are solid shaft 500K CTS units, while the volume pots are the same with a 250K rating. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker guitar with the 5-control harness, single coil pickups and dual Rick-O-Sound outputs. I can build a custom harness for most Rickenbacker guitars and basses.**** I also carry the five vintage style black knobs with white pointers for these instruments for $15 a set. Please message me if you want them added to your order BEFORE you purchase.****Any questions, please ask!
Show more Wiring Harness for Rickenbacker 360/620/330 5-Control Guitars and 4005 Basses
I built this harness using components from the same suppliers that Rickenbacker used in the 70's and early 80's, and optimized it for use with the stock Hi-Gain, or Toaster single coil pickups. The tone caps are NOS Cornell-Dubillier .047uF spec units from the 70's, while the pickup selector and output jacks are made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone and neck pickup fader pots are solid shaft 500K CTS units, while the volume pots are the same with a 250K rating. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker guitar with the 5-control harness, single coil pickups and dual Rick-O-Sound outputs. I can build a custom harness for most Rickenbacker guitars and basses.**** I also carry the five vintage style black knobs with white pointers for these instruments for $15 a set. Please message me if you want them added to your order BEFORE you purchase.****Any questions, please ask!
|
Rickenbacker 340/370/350SH 3 Pickup Guitar 5-Control Wiring Harness - Mono
$111.00
Wiring Harness for Rickenbacker 340/370/350SH 5-Control Guitars
I custom build my harnesses using components from the same suppliers that Rickenbacker also uses, and optimize this one for use with 3 stock Hi-Gain, or Toaster single coil pickups. Instead of running the neck and middle pickups on the same circuit, with the 5th control as a fader for them, the neck pickup is on one circuit, the bridge pickup is on another, and the middle pickup volume is controlled by the 5th knob. this way it can be mixed with the other two pickups at any volume desired, or even soloed if the other two volumes are turned down. The tone caps are Sprague .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS units, while the volume pots are the same with a 250K rating, and the output is made by Switchcraft. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 3 pickup guitar with the 5-control harness, single coil pickups and mono output. This harness is available with stereo/mono output jacks for $10 more. I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
Show more Wiring Harness for Rickenbacker 340/370/350SH 5-Control Guitars
I custom build my harnesses using components from the same suppliers that Rickenbacker also uses, and optimize this one for use with 3 stock Hi-Gain, or Toaster single coil pickups. Instead of running the neck and middle pickups on the same circuit, with the 5th control as a fader for them, the neck pickup is on one circuit, the bridge pickup is on another, and the middle pickup volume is controlled by the 5th knob. this way it can be mixed with the other two pickups at any volume desired, or even soloed if the other two volumes are turned down. The tone caps are Sprague .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS units, while the volume pots are the same with a 250K rating, and the output is made by Switchcraft. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 3 pickup guitar with the 5-control harness, single coil pickups and mono output. This harness is available with stereo/mono output jacks for $10 more. I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
|

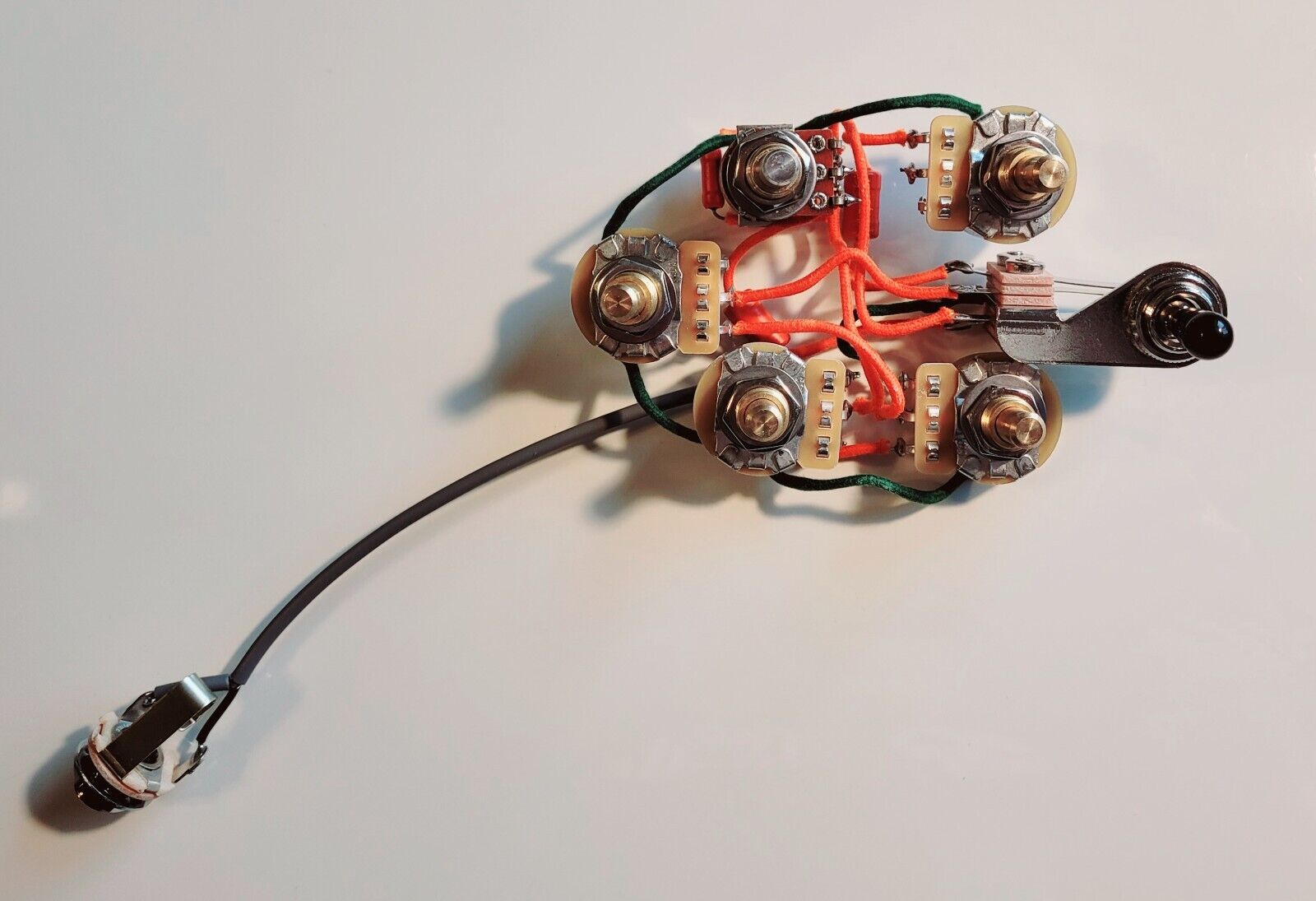

Rickenbacker 350,360,620,4005XC 5- Control Guitar Harness - Mono/Stereo Output
$121.00
Wiring Harness for Rickenbacker 360/620/330 5-Control Guitars and 4005 Basses
I built this harness using components from the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, or Toaster single coil pickups. The tone caps are Sprague .047uF spec units, while the pickup selector and output jacks are made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone and neck pickup fader pots are solid shaft 500K CTS units, while the volume pots are the same with a 250K rating. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker guitar with the 5-control harness, single coil pickups and dual Rick-O-Sound outputs. I can build a custom harness for most Rickenbacker guitars and basses. I also carry the five vintage style black knobs with white pointers for these instruments for $15 a set. Please message me if you want them added to your order BEFORE you purchase. Any questions, please ask!
Show more Wiring Harness for Rickenbacker 360/620/330 5-Control Guitars and 4005 Basses
I built this harness using components from the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, or Toaster single coil pickups. The tone caps are Sprague .047uF spec units, while the pickup selector and output jacks are made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone and neck pickup fader pots are solid shaft 500K CTS units, while the volume pots are the same with a 250K rating. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker guitar with the 5-control harness, single coil pickups and dual Rick-O-Sound outputs. I can build a custom harness for most Rickenbacker guitars and basses. I also carry the five vintage style black knobs with white pointers for these instruments for $15 a set. Please message me if you want them added to your order BEFORE you purchase. Any questions, please ask!
|
Rickenbacker 360,620 5-Control Guitar Harness-Mono Output w/Vintage Tone Control
$121.00
Wiring Harness for Rickenbacker 330,340,360/620,660,4005 5-Control Guitars
I built this harness using components from the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, or Toaster single coil pickups. The tone caps are Sprague .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The neck tone and neck pickup fader pots are solid shaft 500K CTS units, the bridge tone is a Bournes push-pull pot that brings the .0047uF bass cut vintage tone cap into the curcuit. The volume pots are solid shaft CTS pots with a 250K rating, and the output jack is made by Switchcraft. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker guitar with the 5-control harness, single coil pickups and mono output. This harness is available with stereo/mono output jacks for $10 more. I also carry the five vintage style black knobs with white pointers for these instruments for $15 a set. Please message me if you want them added to your order BEFORE you purchase. I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
Show more Wiring Harness for Rickenbacker 330,340,360/620,660,4005 5-Control Guitars
I built this harness using components from the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, or Toaster single coil pickups. The tone caps are Sprague .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The neck tone and neck pickup fader pots are solid shaft 500K CTS units, the bridge tone is a Bournes push-pull pot that brings the .0047uF bass cut vintage tone cap into the curcuit. The volume pots are solid shaft CTS pots with a 250K rating, and the output jack is made by Switchcraft. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker guitar with the 5-control harness, single coil pickups and mono output. This harness is available with stereo/mono output jacks for $10 more. I also carry the five vintage style black knobs with white pointers for these instruments for $15 a set. Please message me if you want them added to your order BEFORE you purchase. I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
|

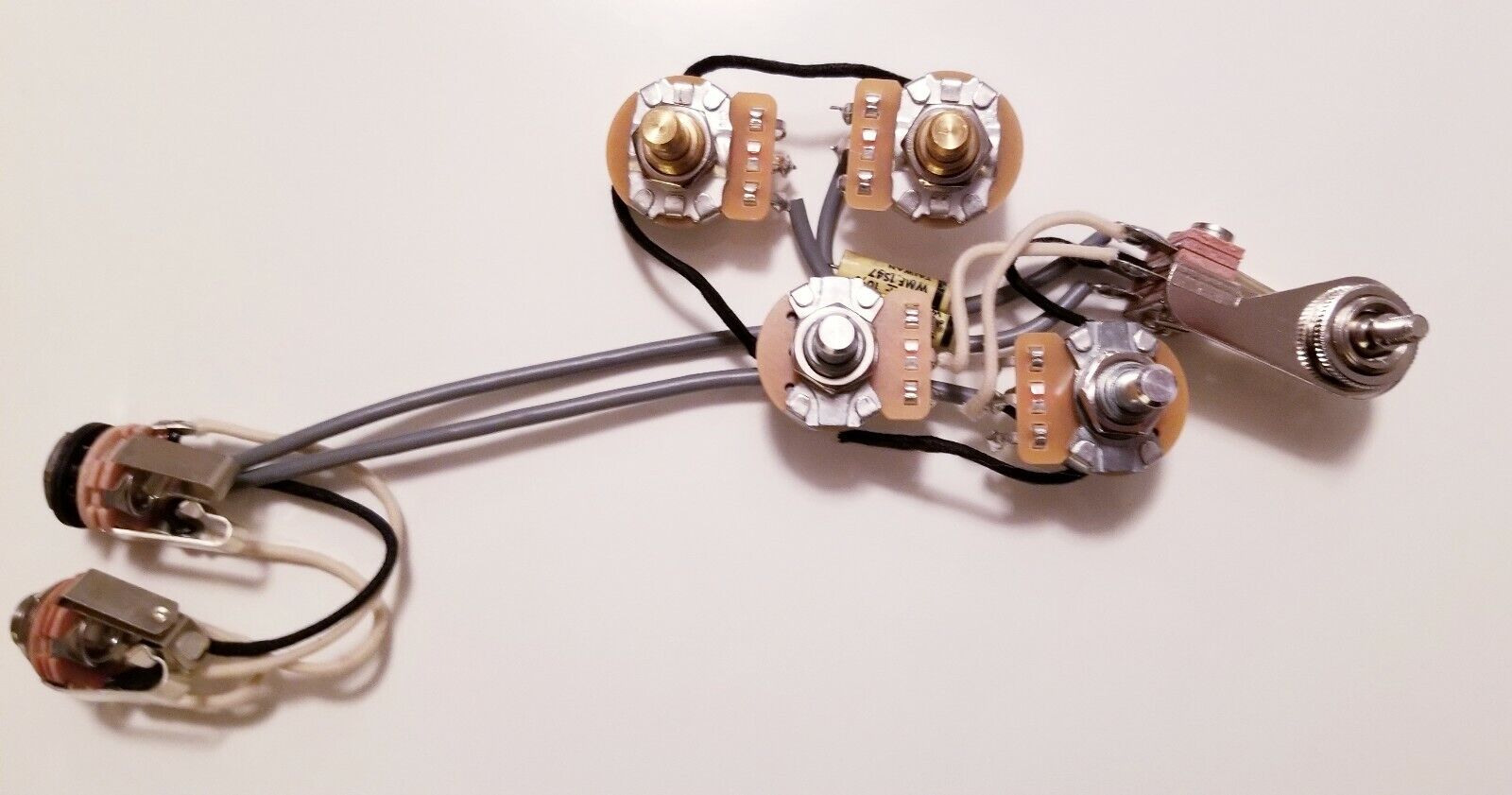

Rickenbacker 4001/3 Wiring harness w/Vintage Tone Control - Stereo/Mono Outputs
$121.00
Wiring Harness for Rickenbacker 4001/4003 Basses w/Vintage Tone Option
I built this harness using components from many of the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, RIHS, or Toaster pickups. The main tone caps are Sprague "Orange Drop" .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 10% of rated spec, and matched in pairs to within 1% of each other. The volume pots are solid shaft 250K CTS, while the bridge tone pot is a 500K Bourns push-pull to activate the vintage tone option using a .0047uF tone cap. The neck pickup tone pot is a solid shaft CTS with a 500K rating, and the output jacks are Switchcraft, all wired up with vintage style cloth insulated 22 gauge wire. This harness is ideal for any Rickenbacker 4001 or 4003 with single coil pickups and Rick-O-Sound output jacks. I also have vintage style knobs at $12.00 a set to go with this harness. I can build a custom harness for most Rickenbacker guitars and basses. ***Note: Push-pull controls require 1" of cavity depth below the control***Any questions, please ask!
Show more Wiring Harness for Rickenbacker 4001/4003 Basses w/Vintage Tone Option
I built this harness using components from many of the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, RIHS, or Toaster pickups. The main tone caps are Sprague "Orange Drop" .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 10% of rated spec, and matched in pairs to within 1% of each other. The volume pots are solid shaft 250K CTS, while the bridge tone pot is a 500K Bourns push-pull to activate the vintage tone option using a .0047uF tone cap. The neck pickup tone pot is a solid shaft CTS with a 500K rating, and the output jacks are Switchcraft, all wired up with vintage style cloth insulated 22 gauge wire. This harness is ideal for any Rickenbacker 4001 or 4003 with single coil pickups and Rick-O-Sound output jacks. I also have vintage style knobs at $12.00 a set to go with this harness. I can build a custom harness for most Rickenbacker guitars and basses. ***Note: Push-pull controls require 1" of cavity depth below the control***Any questions, please ask!
|
Rickenbacker 4001/3S Wiring Harness-Mono/Stereo w/Vintage Tone Control
$121.00
Wiring Harness for Rickenbacker 4001S/4003S Basses with Switchable Mono/Stereo Output and Vintage Tone Control
I build this harness for those who own the new 4003S bass or the older 4001S and 4001CS models with the single output jack who also want the option of playing in stereo like the 4003 deluxe model with Rick-O-Sound. It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with the stock Hi-Gain, RIHS, or Toaster pickups. The tone caps are Sprague .047uF spec units, while the pickup selector switch and output jack is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec. The neck pickup tone pot is a solid shaft 500K CTS. The bridge tone pot is a 500K Bourns push-pull pot that also activates a .0047uF tone cap in the bridge pickup circuit when pulled up. The neck volume pot is a solid shaft 250K CTS, while the bridge volume pot is a 250K Bourns push-pull pot that changes the output from mono to stereo when pulled up. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001S or 4003S with single coil pickups and mono output jack. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is available with an additional stereo output jack for $5.00 more for those who'd like to use it in the 4003 with Rick-O-Sound to upgrade from the sometimes problematic stock output jacks. I can build a custom harness for most Rickenbacker guitars and basses. ***Note: Push-pull controls require1" of cavity depth below the control***Any questions, please ask!
Show more Wiring Harness for Rickenbacker 4001S/4003S Basses with Switchable Mono/Stereo Output and Vintage Tone Control
I build this harness for those who own the new 4003S bass or the older 4001S and 4001CS models with the single output jack who also want the option of playing in stereo like the 4003 deluxe model with Rick-O-Sound. It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with the stock Hi-Gain, RIHS, or Toaster pickups. The tone caps are Sprague .047uF spec units, while the pickup selector switch and output jack is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec. The neck pickup tone pot is a solid shaft 500K CTS. The bridge tone pot is a 500K Bourns push-pull pot that also activates a .0047uF tone cap in the bridge pickup circuit when pulled up. The neck volume pot is a solid shaft 250K CTS, while the bridge volume pot is a 250K Bourns push-pull pot that changes the output from mono to stereo when pulled up. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001S or 4003S with single coil pickups and mono output jack. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is available with an additional stereo output jack for $5.00 more for those who'd like to use it in the 4003 with Rick-O-Sound to upgrade from the sometimes problematic stock output jacks. I can build a custom harness for most Rickenbacker guitars and basses. ***Note: Push-pull controls require1" of cavity depth below the control***Any questions, please ask!
|
Rickenbacker 4001/4003 Harness w/Vintage Tone - ROS w/SoZo Tone Caps
$142.00
Wiring Harness for Rickenbacker 4001/4003 Basses w/Vintage Tone Option, ROS and SoZo Tone Caps
I built this harness using components from many of the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, RIHS, or Toaster pickups. The main tone caps are SoZo .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 10% of rated spec, and matched in pairs to within 1% of each other. The volume pots are solid shaft 250K CTS, while the bridge tone pot is a 500K Bourns push-pull to activate the vintage tone option using a .0047uF tone cap. The neck pickup tone pot is a CTS with a 500K rating, and the output jacks are Switchcraft, all wired up with vintage style cloth insulated 22 gauge wire. This harness is ideal for any Rickenbacker 4001 or 4003 with single coil pickups and Rick-O-Sound output jacks. I also have vintage style knobs at $12.00 a set to go with this harness. I can build a custom harness for most Rickenbacker guitars and basses. ***Note: Push-pull controls require 1" of cavity depth below the control.***Any questions, please as
Show more Wiring Harness for Rickenbacker 4001/4003 Basses w/Vintage Tone Option, ROS and SoZo Tone Caps
I built this harness using components from many of the same suppliers that Rickenbacker also uses, and optimized it for use with the stock Hi-Gain, RIHS, or Toaster pickups. The main tone caps are SoZo .047uF spec units, while the pickup selector is made by Switchcraft. Unlike the factory harness, these pots are within 10% of rated spec, and matched in pairs to within 1% of each other. The volume pots are solid shaft 250K CTS, while the bridge tone pot is a 500K Bourns push-pull to activate the vintage tone option using a .0047uF tone cap. The neck pickup tone pot is a CTS with a 500K rating, and the output jacks are Switchcraft, all wired up with vintage style cloth insulated 22 gauge wire. This harness is ideal for any Rickenbacker 4001 or 4003 with single coil pickups and Rick-O-Sound output jacks. I also have vintage style knobs at $12.00 a set to go with this harness. I can build a custom harness for most Rickenbacker guitars and basses. ***Note: Push-pull controls require 1" of cavity depth below the control.***Any questions, please as
|
Rickenbacker 4001S, 4003S, 650, and 480 Guitars- Mono Output
$101.00
Wiring Harness for Rickenbacker 4001S/4003S Basses Mono Output.
I built this harness for those who own the new 4003S bass, 480 guitar, or the older 4001S, 4001V63, 4001C64, and 4001CS models with the single output jack. It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with the stock Hi-Gain, RIHS, or Toaster pickups. The tone caps are Sprague .047uF spec Orange Drops, while the pickup selector switch and output jack is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the volume pots are the same with a 250K rating. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001/3 bass with single coil pickups and mono output jack. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is also available with the vintage push-pull tone option for $12.00 more . I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
Show more Wiring Harness for Rickenbacker 4001S/4003S Basses Mono Output.
I built this harness for those who own the new 4003S bass, 480 guitar, or the older 4001S, 4001V63, 4001C64, and 4001CS models with the single output jack. It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with the stock Hi-Gain, RIHS, or Toaster pickups. The tone caps are Sprague .047uF spec Orange Drops, while the pickup selector switch and output jack is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the volume pots are the same with a 250K rating. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001/3 bass with single coil pickups and mono output jack. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is also available with the vintage push-pull tone option for $12.00 more . I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
|
Rickenbacker 4001S, 4003S, 650, and 480 Guitars- Mono Output Left Handed
$101.00
Wiring Harness for Rickenbacker 4001S/4003S Basses Mono Output Left Handed with Left Handed Counterclockwise Pot Rotation
I built this harness for those who own the new 4003S bass, 480 guitar, or the older 4001S, 4001V63, 4001C64, and 4001CS models with the single output jack. It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with the stock Hi-Gain, RIHS, or Toaster pickups. The tone caps are Sprague .047uF spec Orange Drops, while the pickup selector switch and output jack is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the volume pots are the same with a 250K rating. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001/3 bass with single coil pickups and mono output jack. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is also available with the vintage push-pull tone option for $12.00 more . I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
Show more Wiring Harness for Rickenbacker 4001S/4003S Basses Mono Output Left Handed with Left Handed Counterclockwise Pot Rotation
I built this harness for those who own the new 4003S bass, 480 guitar, or the older 4001S, 4001V63, 4001C64, and 4001CS models with the single output jack. It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with the stock Hi-Gain, RIHS, or Toaster pickups. The tone caps are Sprague .047uF spec Orange Drops, while the pickup selector switch and output jack is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the volume pots are the same with a 250K rating. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001/3 bass with single coil pickups and mono output jack. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is also available with the vintage push-pull tone option for $12.00 more . I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
|
Rickenbacker 4001S/4003S Bass Wiring Harness - Mono/Stereo
$111.00
Wiring Harness for Rickenbacker 4001S/4003S Basses with Switchable Mono/Stereo Output.
I built this harness for those who own the new 4003S bass or the older 4001S and 4001CS models with the single output jack who also want the option of playing in stereo like the 4003 deluxe model with Rick-O-Sound. It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with the stock Hi-Gain, RIHS, or Toaster pickups. The tone caps are Cornell-Dubillier .047uF spec units, while the pickup selector switch and output jack is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the neck volume is a CTS 250K pot. The bridge volume pot is a 250K Bourns push-pull pot that changes the output from mono to stereo when pulled up. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001S or 4003S with single coil pickups and mono output jack. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is available with an additional stereo output jack for $5.00 more for those who'd like to use it in the 4003 with Rick-O-Sound to upgrade from the sometimes problematic stock output jacks, or with the vintage push-pull tone option for $12.00 more . ***Note: Push-pull controls require 1" of cavity depth below the control***I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
Show more Wiring Harness for Rickenbacker 4001S/4003S Basses with Switchable Mono/Stereo Output.
I built this harness for those who own the new 4003S bass or the older 4001S and 4001CS models with the single output jack who also want the option of playing in stereo like the 4003 deluxe model with Rick-O-Sound. It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with the stock Hi-Gain, RIHS, or Toaster pickups. The tone caps are Cornell-Dubillier .047uF spec units, while the pickup selector switch and output jack is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the neck volume is a CTS 250K pot. The bridge volume pot is a 250K Bourns push-pull pot that changes the output from mono to stereo when pulled up. It's all wired up with vintage style cloth insulated 22gauge wire. This harness is ideal for any Rickenbacker 4001S or 4003S with single coil pickups and mono output jack. I also have vintage style knobs at $12.00 a set to go with this harness. This harness is available with an additional stereo output jack for $5.00 more for those who'd like to use it in the 4003 with Rick-O-Sound to upgrade from the sometimes problematic stock output jacks, or with the vintage push-pull tone option for $12.00 more . ***Note: Push-pull controls require 1" of cavity depth below the control***I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
|

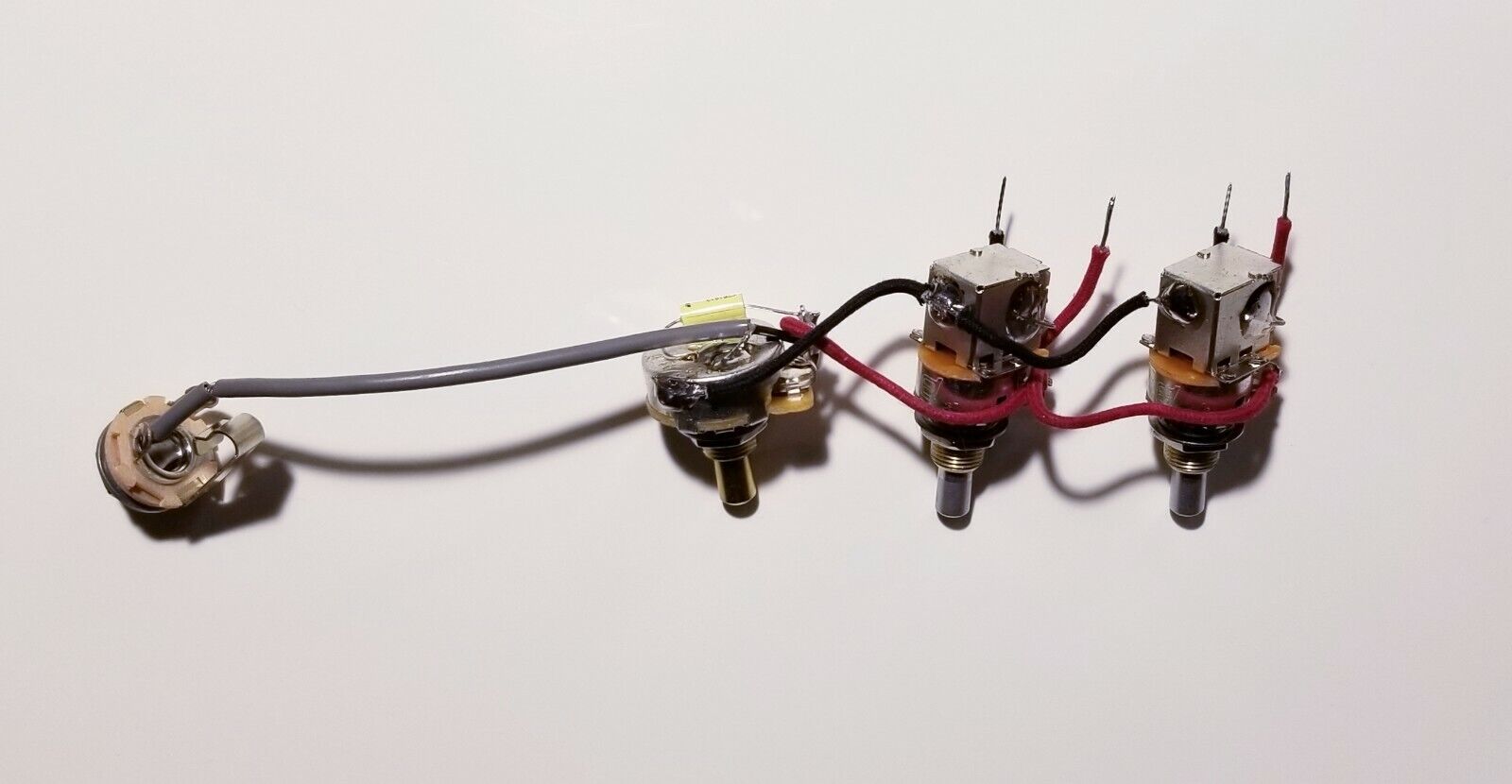

Rickenbacker 4004 Wiring Harness - Volume-Volume-Tone w/Coil Tapping
$76.00
Wiring Harness for Rickenbacker 4004 Basses
I built this harness for those who own 4004 basses. It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with HB1 humbucking pickups. The tone cap is an ERO .022uF cap, and the output jack is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, matched to within 5% of each other, and NOT the tone killing 175k-275k pots these instruments came with. The volume pots are solid shaft 500K Bourns push-pull pots that short a coil in each pickup when pulled. The tone pot is a 500K CTS pot. It's all wired up with vintage style cloth insulated 22gauge wire. Jumper wires are added to make it easier to solder your pickups to in the tight control cavity. This harness is ideal for any Rickenbacker 4004 bass with HB1 humbucking pickups and mono output jack.*** Pictured are chrome knobs at $35.00 a set to go with this harness***. The pickup lead wires will need to be modified to use this harness, and the original 1/4" pickup switch hole will need to be enlarged to 3/8". I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
Show more Wiring Harness for Rickenbacker 4004 Basses
I built this harness for those who own 4004 basses. It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with HB1 humbucking pickups. The tone cap is an ERO .022uF cap, and the output jack is made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, matched to within 5% of each other, and NOT the tone killing 175k-275k pots these instruments came with. The volume pots are solid shaft 500K Bourns push-pull pots that short a coil in each pickup when pulled. The tone pot is a 500K CTS pot. It's all wired up with vintage style cloth insulated 22gauge wire. Jumper wires are added to make it easier to solder your pickups to in the tight control cavity. This harness is ideal for any Rickenbacker 4004 bass with HB1 humbucking pickups and mono output jack.*** Pictured are chrome knobs at $35.00 a set to go with this harness***. The pickup lead wires will need to be modified to use this harness, and the original 1/4" pickup switch hole will need to be enlarged to 3/8". I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
|

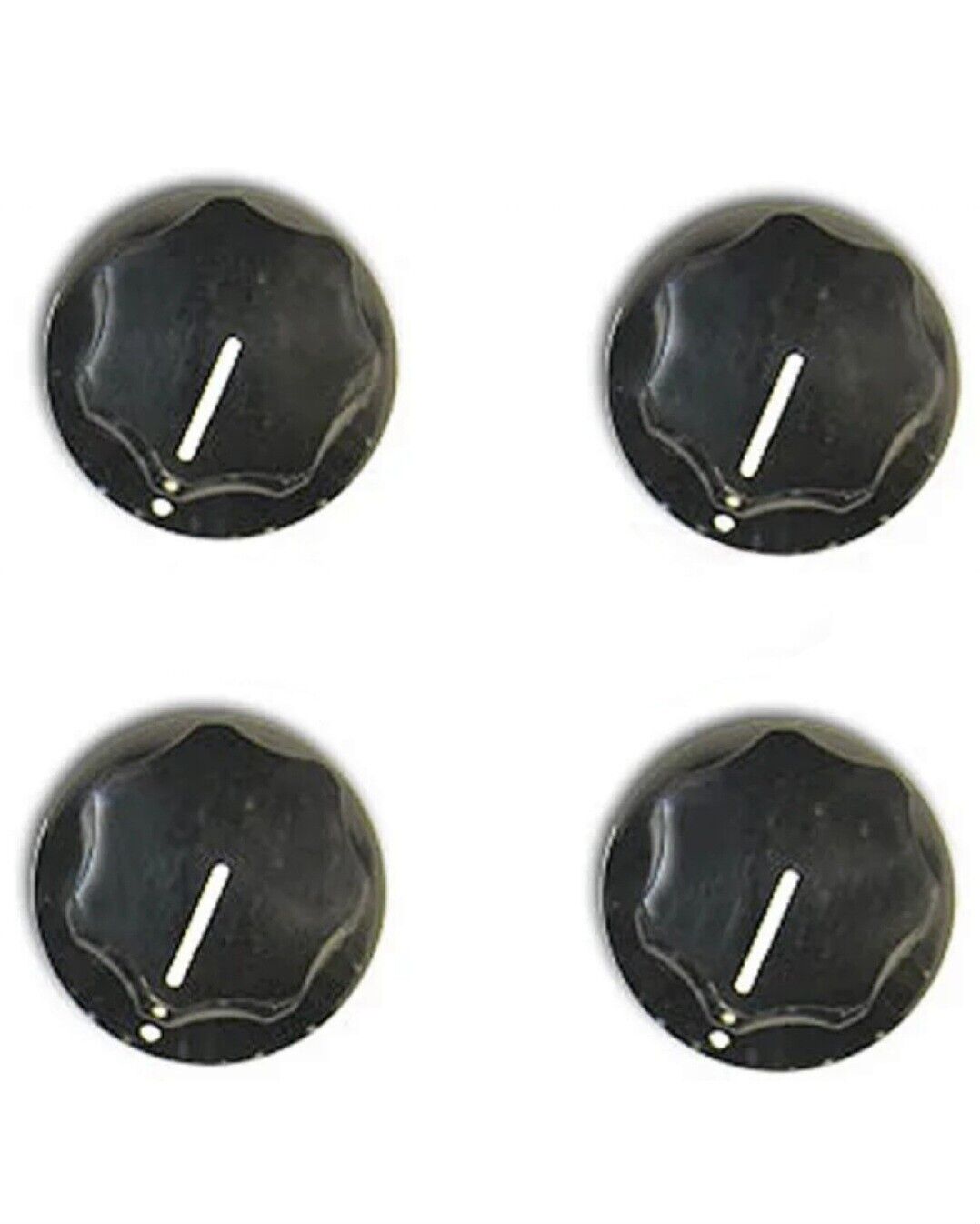

Rickenbacker Vintage Black Bass Knobs Set of 4
$16.00
Black
Black
|
|
Rickenbacker Vintage Clear Bass Knobs Set of 4
$16.00
Clear
Clear
|
|
Rickenbacker Vintage Cream Bass Knobs Set of 4
$16.00
Cream
Cream
|
|
Rickenbacker Vintage Grey Bass Knobs Set of 4
$16.00
Grey
Grey
|
|
Rickenbacker Vintage Red Bass Knobs Set of 4
$16.00
Red
Red
|
|
Rickenbacker Vintage White Bass Knobs Set of 4
$16.00
White
White
|
Wiring Harness for Rickenbacker 325C58 Guitar
$121.00
***Wiring Harness for Rickenbacker 325C58 Guitar***
I built this harness for those who own the 325C58 guitar. It can also be used in any 4 control Rickenbacker guitar, but is specifically patterened after the unique harness in the C58 with it's reverse wired tone controls, premium tone caps, and all green cloth insulated wire with mono output.
It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with the stock Toaster pickups. The tone caps are SoZo .047uF spec, while the pickup selector switch and output jack are made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the volume pots are the same with a 250K rating. It's all wired up with vintage style green cloth insulated 22gauge wire. This harness is also available with the vintage push-pull tone option for $12.00 more . I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
Show more ***Wiring Harness for Rickenbacker 325C58 Guitar***
I built this harness for those who own the 325C58 guitar. It can also be used in any 4 control Rickenbacker guitar, but is specifically patterened after the unique harness in the C58 with it's reverse wired tone controls, premium tone caps, and all green cloth insulated wire with mono output.
It's built using components from some of the same suppliers that Rickenbacker also uses, and optimized for use with the stock Toaster pickups. The tone caps are SoZo .047uF spec, while the pickup selector switch and output jack are made by Switchcraft. Unlike the factory harness, these pots are within 5% of rated spec, and matched in pairs to within 1% of each other. The tone pots are solid shaft 500K CTS, while the volume pots are the same with a 250K rating. It's all wired up with vintage style green cloth insulated 22gauge wire. This harness is also available with the vintage push-pull tone option for $12.00 more . I can build a custom harness for most Rickenbacker guitars and basses. Any questions, please ask!
|
